Eaton / Vickers Cetop 3
Description
DG4V3 & DG4V3-S Series Features
• Up to 80 l/min at 350 bar.
• International standard interface. The valve mounting face conforms to ISO 4401, size 03 and is compatible with related international standards.
• Moulded coils for maximum insulating properties, which are impervious to dirt and moisture.
• Plug in solenoid for ease of maintenance.
High Performance Cetop 3
|
Model |
Description |
Max. Flow See Chart Below lpm |
Max. Press. bar |
|
DG4V-3-*-A**-MU-***-60 |
Single solenoid, 2 position |
60 |
350 |
|
DG4V-3-*-B**-MU-***-60 |
Single solenoid, 2 position |
80 |
350 |
|
DG4V-3-*-C-MU-***-60 |
Double solenoid, 3 position |
80 |
350 |
|
DG4V-3-*-N-MU-H7-60 |
Double solenoid detent, 2 position |
60 |
350 |

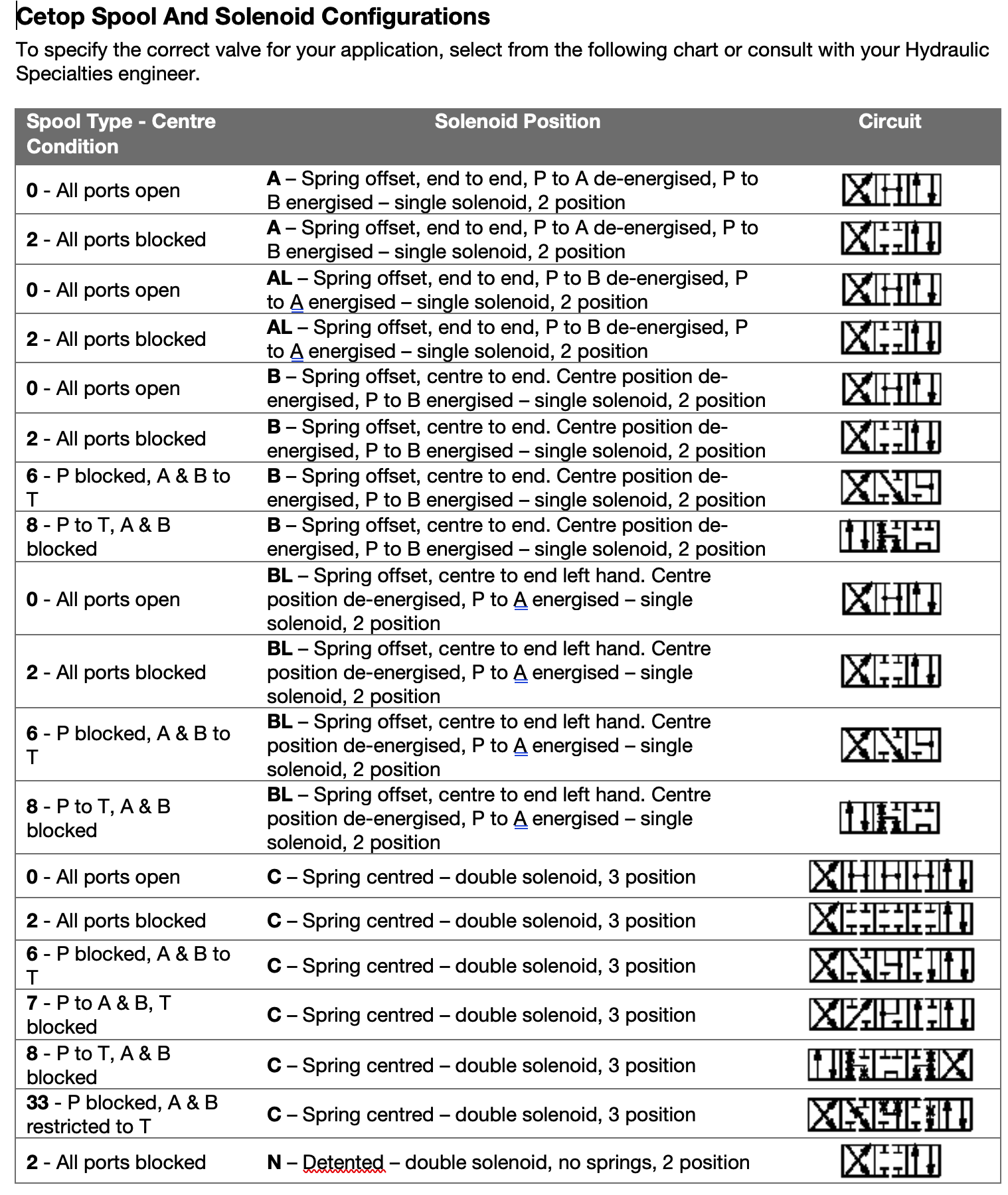

* - Spool type - Click here to view Eaton / Vickers Cetop spool types
** - Solenoid position
*** - Coil voltage
|
Max. Flow Rates @ 207 bar - Dual Flow Path |
||
|
Spool & Position |
VAC lpm |
VDC lpm |
|
0 |
60 |
60 |
|
2-C & 2-B |
60 |
80 |
|
2-A & 2-N |
60 |
60 |
|
6 |
22 |
32 |
|
8 |
30 |
42 |
|
507847 |
12VDC coil |
|
|
507848 |
24VDC coil |
|
|
507825 |
110VAC/50HZ coil |
|
|
507827 |
240VAC/50HZ coil |
|
|
865835 |
24VAC/50HZ coil |
|
|
Steel Sub-plate, 3/8" BSP, side ported |
||
- List price does not include Hirschman (DIN) plugs and M5x30 bolt kit
- Maximum tank port pressure is 210 bar - consult Hydraulic Specialties
Soft Shifting Cetop 3
|
Model |
Description |
Max. Flow See Chart Below lpm |
Max. Press. bar |
|
DG4V-3-*-B-207-MU-***-5-60 |
Single solenoid, 2 position |
38 |
350 |
|
DG4V-3-S-2-A-207-MU-***-5-60 |
Single solenoid, 2 position |
15 |
350 |
|
DG4V-3-S-*-C-207-MU-***-5-60 |
Double solenoid, 3 position |
38 |
350 |
* - Spool type
*** - Coil voltage
|
Max. Flow Rates @ 207 bar - Dual Flow Path |
|
|
Spool & Position |
Flow lpm |
|
0 |
38 |
|
2-C |
24 |
|
2-A |
15 |
|
6 |
17 |
|
8 |
12 |
|
02-123938 |
12VDC coil |
|
02-123939 |
24VDC coil |
|
02-140211 |
Orifice tool kit |
|
635134 |
0.7mm orifice, one per core tube (Shifts in 625ms, returns in 550ms) |
|
635135 |
0.8 mm orifice, one per core tube (Shifts in 400ms, returns in 375ms) |
|
893320 |
0.9 mm orifice, one per core tube (Shifts in 250ms, returns in 250ms) |
- List price does not include Hirschman (DIN) plugs and M5x30 bolt kit
- Maximum tank port pressure is 100 bar - consult Hydraulic Specialties
- Response times shown are for a type “2C” spool at a system pressure of 207 bar and a flow of 19 L/min. For different spools and times contact Hydraulic Specialties.
Manually Operated Cetop 3
|
Model |
Part Number |
Spool And Position |
Max. Press. Bar |
|
DG17V3 |
02-135314 |
0-C Spring Centred – All ports open |
350 |
|
DG17V3 |
02-127343 |
2-C Spring Centred – All ports closed |
350 |
|
DG17V3 |
02-135316 |
6-C Spring Centred – P blocked, A & B to T |
350 |
|
DG17V3 |
02-140909 |
8-C Spring Centred – P to T, A & B blocked |
350 |
Hydraulically Operated Cetop 3
|
Model |
Part Number |
Spool And Position |
Max. Press. Bar |
|
DGV3V |
02-154597 |
2-C Spring Centred – All ports closed |
350 |
- 1/8” BSP pilot and external drain
- Maximum tank port pressure is 207 bar - consult Hydraulic Specialties
