Char-Lynn Hydraulic Motors

— Hyspecs Hydraulics

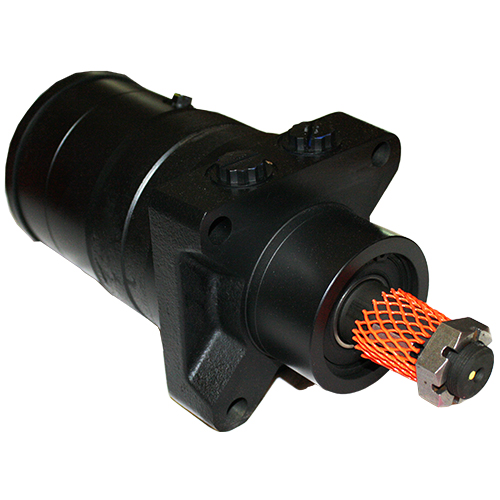

For the past 45 years, the Char-Lynn®‚ brand has been recognised as the industry leader in low-speed, high-torque (LSHT) hydraulic motor technology. The name Char-Lynn was coined by one of the original pioneers in the hydraulic industry, the late Mr. Lynn Charlson. Hyspecs has sold and serviced Char-Lynn hydraulic motors for decades. A testament to how much faith the hydraulic industry has in the Char-Lynn brand.

products_hydraulicmotors_eaton char lynn motors H.jpg

The hydraulic motor designs developed by Lynn Charlson and his team use what is termed as the Orbit principle. This principal is the center of the designs pioneered by the Char-Lynn team and is based on the fact that a gerotor or Geroler®‚ star orbits multiple times (typically 6 to 8 times depending on specific star and ring geometry) for each complete single revolution within the outer ring. This principle is what gives Char-Lynn motors their reliable high power density and extremely compact size.

Low-Speed, High-Torque (LSHT) Motors - Geroler

Each of three Char-Lynn Geroler product lines include a wide variety of available displacements customizable specifically for application needs.

  • Spool valve motors: J-motor, H-motor, S-motor, T-motor, T-brake
  • Disc valve motors: 2000 Series, 4000 Series, 4000 Compact Series, Delta, 6000 Series, 10,000 Series
  • HP and VIS (Valve in Star) motors: HP30, HP50, VIS 40, VIS 45
Browse & Purchase Hyspecs Full Range Of Char-Lynn Hydraulic Motors Here
